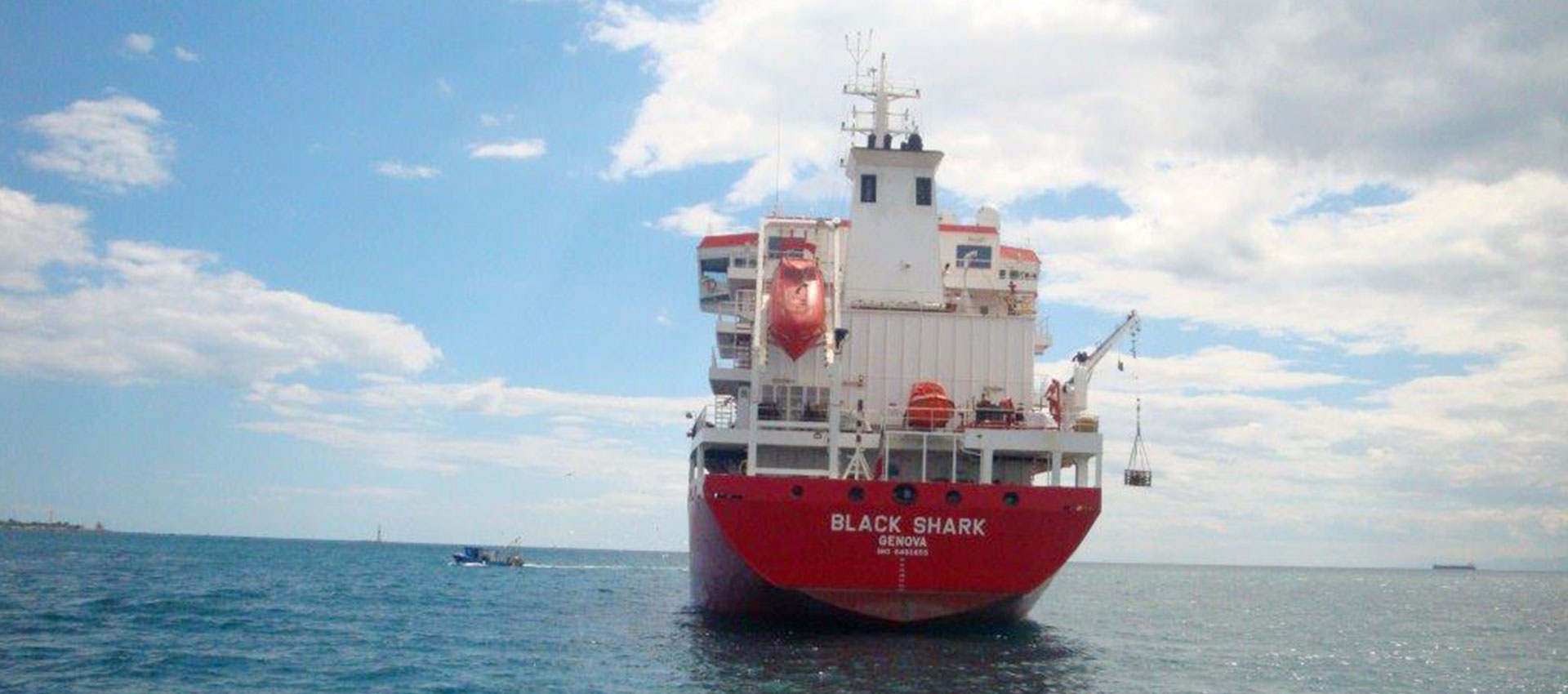

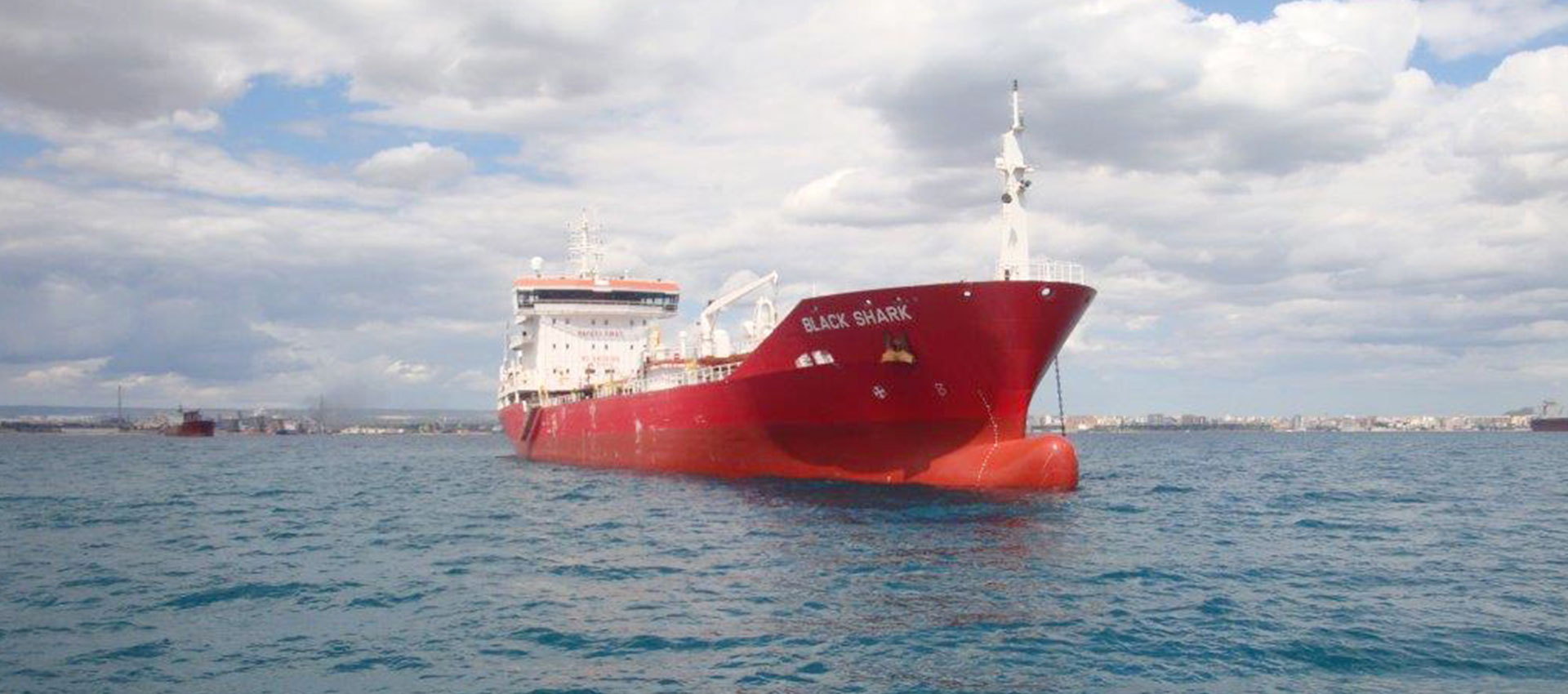

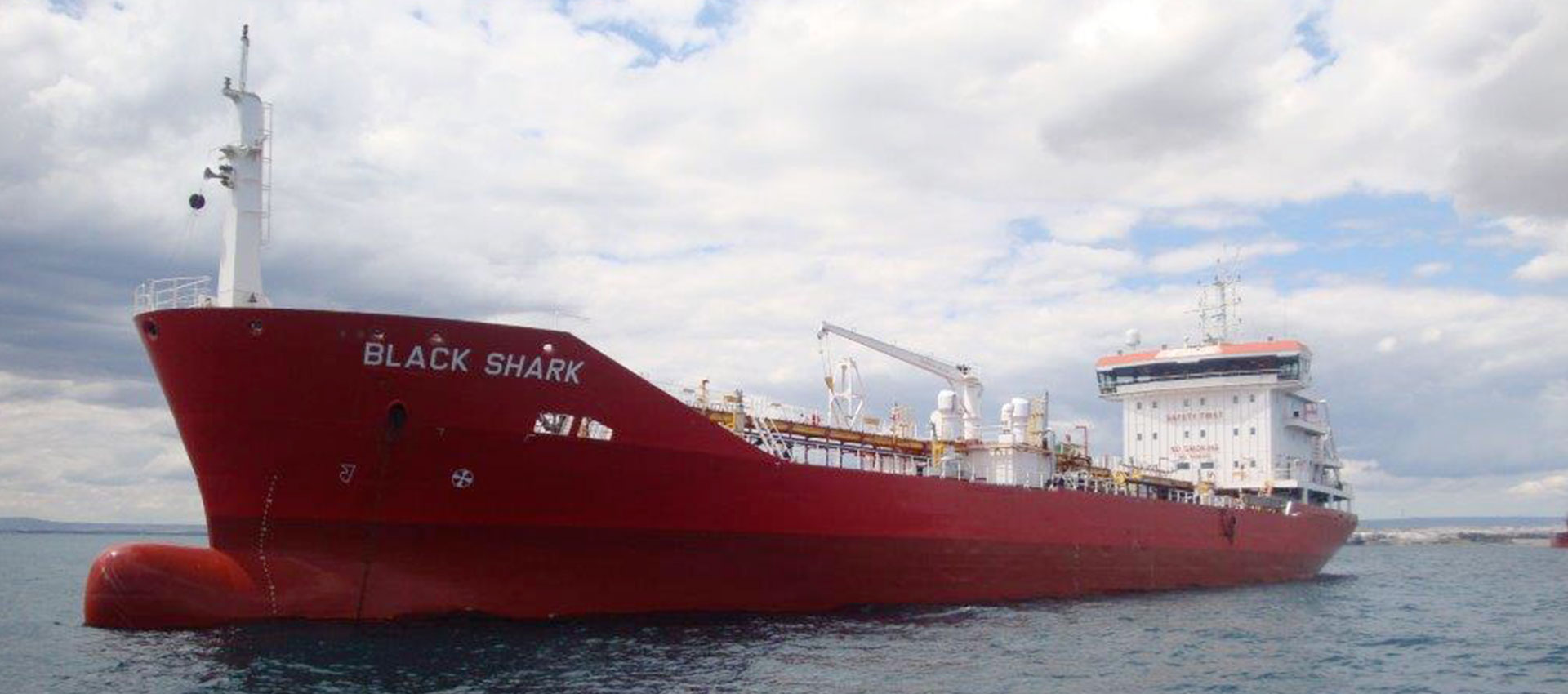

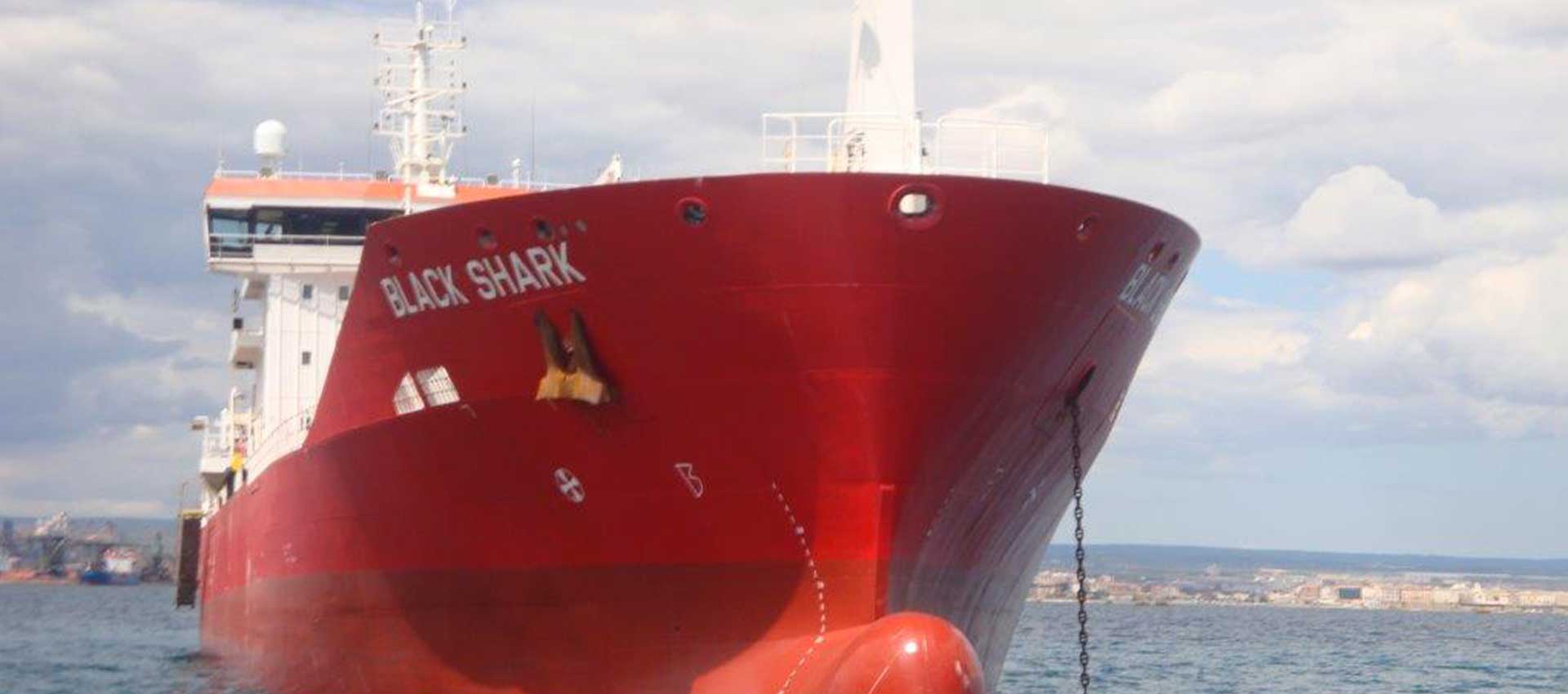

M/T BLACK SHARK

BITUMEN/ASPHALT/PITCH CARRIER • IMO II 8.475 • DWT 6.799 M3

Technical Data
Campo	Valore
IMO	9480655
Call Sign	I.C.N.X.
Type of Vessel	IMO II/BITUMEN/ASPHALT/PITCH CARRIER MAX 250 C°
Year Built/Shipyard	2010 – GISAN GEMI INSA - Istanbul
L.O.A.	mt. 117
L.B.P.	mt. 109,40
Breadth	mt. 19,0
Moulded depth	mt. 10,25
Summer Draft	mt. 7,50

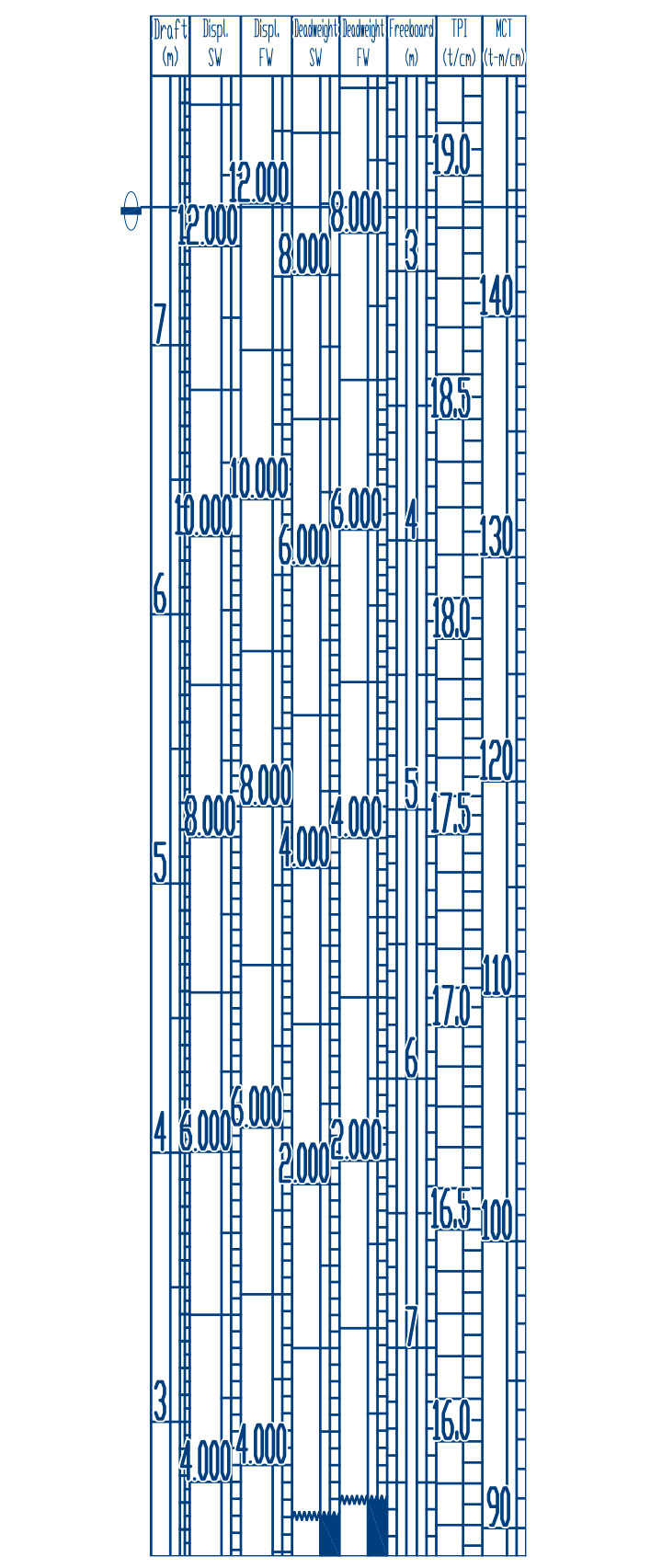

Summer D.W.T.	tonn 8.475
Gross Tonnage	tonn 6.026
Net Tonnage	tonn 1.808
Class Register	Rina
100% Cargo tanks (with slops)	m3 6.688,262
98% Cargo tanks (with slops)	m3 6.554,5
98% Cargo tanks (excluding slops)	m3 6.438
100% Slop tank capacity	m3 91,20
100% Segregate Ballast	m3 3.622,12
Max cargo specifi c gravity	1.2 T /m3
Vapour return line manifold	1x6”
100% Bunker capacity	F.O. m3 478,2 G.O. m3 81,62
100% Fresh water capacity	102,92 m3

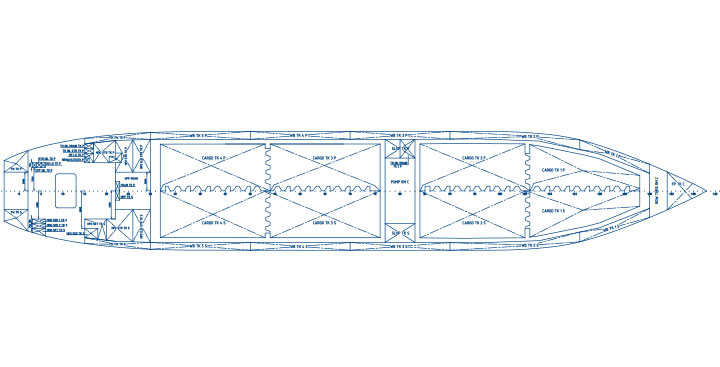

Tank segregations	2
Service speed	12 knots
Main Engine	1 – Wartsila 9L26B2 - 3060 Kw
Propeller system	Pitch propeller
Diesel generator	3 MAN - 580 Kw each
Shaft generator	1 x - 750Kw
Boilers	Garioni Thermal Oil / 2 x 1500 Kcal
Economizer	Garioni / 1x 500Kcal
Bow Thruster/Stern Thruster	Bow Thruster 350 Kw
Max discharging rate	1000 cbm/h
Tank level / temperature system	Rosemount Radar system - SAAB
Cargo heating	Thermal oil
Fixed Gas Detection System	Cosilium Selesmar (%LEL)
Cargo lines and valves materials	Carbon Steel
Stern lines	1 x 10 “
Cargo pumps	Bornemann - Screw type – 1 x 500 cbm/h – 12 BAR Leistritz - Screw type – 1 x 500 cbm/h – 12 BAR
Cranes	1 x 5 ton for cargo hose @ midship - 2 x 2 ton for service @ aft –
Class notation	+ HULL + MACH - Oil Tanker Flashpoit > 60°C - Asphalt carrier (250°C) Chemical Tanker - Unrestricted Navigation + AUT-UMS; + AVM-APS; + STAR-HULL; + STAR MACH; COVENT; MON-SHAFT; CLEANSHIP; INWATERSURVEY; VCS; CARGOCONTROL; MANOVR; + SYS-IBS; AUTPORT;
